MAD Suspension Air Master Comfort VOLKSWAGEN Transporter T6. T6.1

Kit Number: NR-197094-C
Engine: All
Year: 04/2015 to 09/2024
Height Difference (mm):
Install Time (min): 210
Approval: TUV
Remarks: Excl. Chassis/cab. Excl. Multivan. Excl._4motion. Single air circuit

MAD SEMI AIR SUSPENSION

Auxiliary air springs are used in combination with the original vehicle suspension. It provides support in a maximum range. From empty to loaded. Always the desired comfort, stability and safety under all circumstances.

Improve driveability, comfort and road safety. Semi air suspension systems by MAD provide additional and adjustable support to the vehicle's original suspension system. The ride height is controllable with semi air suspension, making it ideal for use in various loading situations. MAD provide a wide product range of air suspension systems making it possible to choose the right system to suit both the requirements of the driver and the vehicle.

Air Master Comfort

A powerful and flexible semi air suspension system for vehicles with leaf springs, always giving the right support under any load condition. The air springs are installed on or next to the original suspension system, for light commercial vehicles, motorhomes and special vehicles. This kit supports the original suspension with air bellows, improving driving characteristics, stability, and safety of the vehicle. The ride height is adjustable, making it ideal for use in various loading situations.

A perfectly tuned semi air suspension system

• Developed and tested for each vehicle to ensure optimal quality, driving characteristics and safety.
• Pre-assembled for quick and easy installation.
• MAD air suspension systems are TÜV certified.
• MAD systems comply with directive ECE R13.
• High Quality Product – Made in the Netherlands (EU).
• Reliability - MAD Air Springs come with 2 year warranty.

COMFORT - With compressor and control panel with switches

Thanks to the compressor and control panel, the air suspension can be operated manually. The ride height can be set separately on the left and right via the control panel. Ideal for light commercial vehicles with varying and/or heavy payloads.

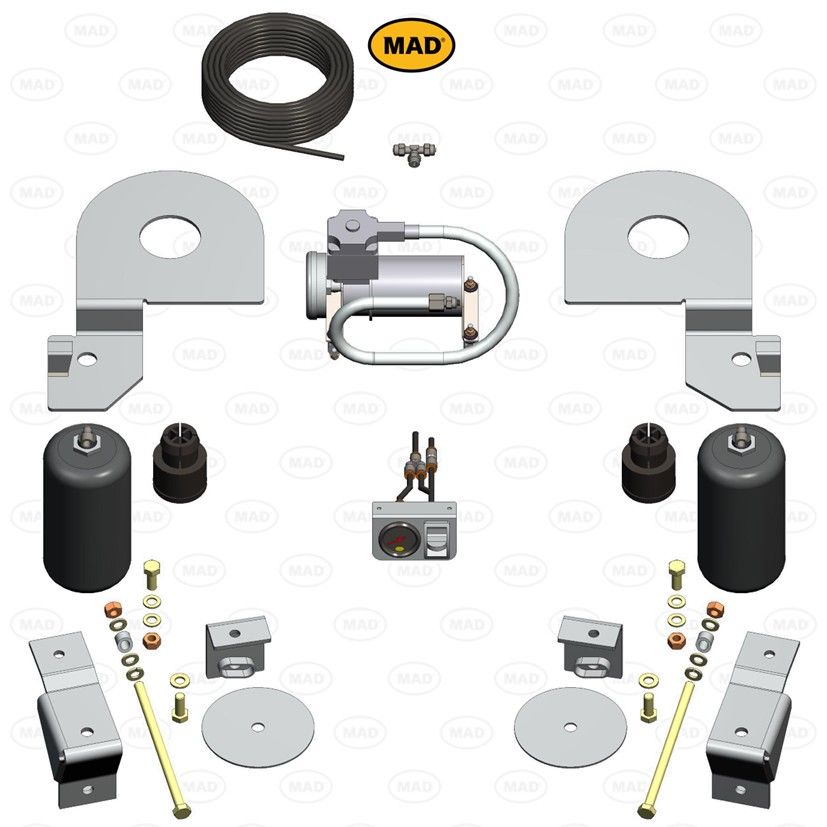

Kit Contents
• 2 air springs
• Compressor (with or without support)
• Control panel
• Mounting materials
• Approval document
• Installation manual

Variants and indication in article number
-C Universal control panel
-CS Vehicle-specific control panel
-CS1 Control panel for seat frame
-CM With compressor on bracket – universal control panel
-CSM With compressor on bracket – vehicle-specific control panel
-CSM1 With compressor on bracket – control panel for seat frame
