MAD Suspension Air Master Basic TOYOTA Hi-Lux VII

[tab name='Description']

Fits Vehicle:

Toyota Hilux Mk.6/Mk.7 2005-2016 4WD

Kit Number: NR-367124-B
Engine: All
Year: 08-2004 to 05-2015
Height Difference (mm):
Install Time (min): 90
Approval: TUV
Spring Compressors: No
Remarks: Only 4WD

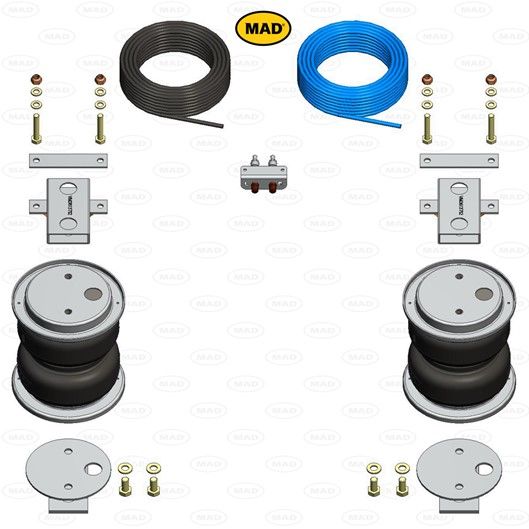

Specification:

Two 6 inch double chamber airbellows for the rear
Two air suspension bellows for the rear
The double chamber airbellows come with a 2 year warranty
Includes two filling valves
Fitting time 120 Mins
Adjustments are made by filling up the system like a regular tire
MAD High Quality Product
Advantage that original springs remain active
Quick installation, without excessive work
Variable setting depending on load
Production in accordance with ISO and TÜV requirements
Mounting brackets are laser-cut and zinc phosphate coated

MAD AUXILIARY AIR SUSPENSION

If you want to be comfortable on the road in both loaded and unloaded situations. More comfort, stability and safety with a MAD air suspension system.

An alternative to auxiliary suspension by means of a coil spring is auxiliary air suspension. MAD has two types of auxiliary air suspension - An air bag that is placed inside the coil spring or air bellows that are mounted next to the original spring.

Depending on the existing suspension of your vehicle, one of the two auxiliary air suspension applications is possible. If the existing suspension is insufficient due to, for example, an extra heavy load, the auxiliary suspension is activated.

MAD AIR MASTER LIGHT - Auxiliary air suspension red bag mounted in original coil spring.
MAD AIR MASTER BASIC - Auxiliary air suspension black bellows with 2 manual filling valves.
MAD AIR MASTER COMFORT - Auxiliary air suspension bellows with compressor and operation panel.
