Fits Vehicle:
Toyota Hilux Mk.8-9 2016+ / 2021+ Hilux
Model KUN125L / KUN126L.
Kit Number: NR-367134-B
Engine: All
Year: 05-2015 to
Height Difference (mm):
Install Time (min): 90
Approval: TUV
Spring Compressors: No
Remarks:
Specification:
Two 6 inch double chamber airbellows for the rear
The double chamber airbellows come with a 2 year warranty
Includes filling valves
Fitting time 90 Mins
Adjustments are made by filling up the system like a regular tyre
MAD High Quality Product
Quick installation, without excessive work
Variable setting depending on load
Production in accordance with ISO and TÜV requirements
Mounting brackets are laser-cut and zinc phosphated
MAD AUXILIARY AIR SUSPENSION
If you want to be comfortable on the road in both loaded and unloaded situations. More comfort, stability and safety with a MAD air suspension system.
An alternative to auxiliary suspension by means of a coil spring is auxiliary air suspension. MAD has two types of auxiliary air suspension - An air bag that is placed inside the coil spring or air bellows that are mounted next to the original spring.
Depending on the existing suspension of your vehicle, one of the two auxiliary air suspension applications is possible. If the existing suspension is insufficient due to, for example, an extra heavy load, the auxiliary suspension is activated.
MAD AIR MASTER LIGHT - Auxiliary air suspension red bag mounted in original coil spring.

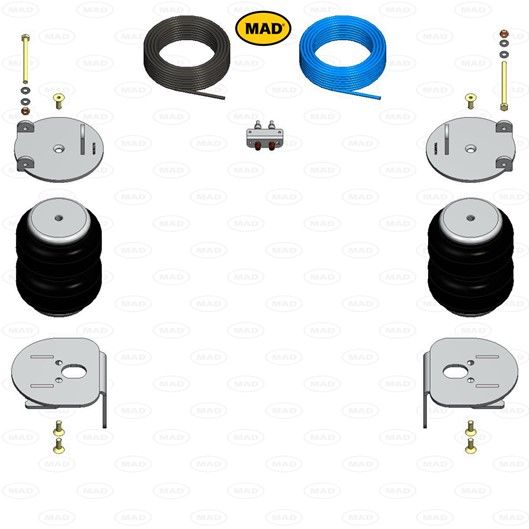

MAD AIR MASTER BASIC - Auxiliary air suspension black bellows with 2 manual filling valves.

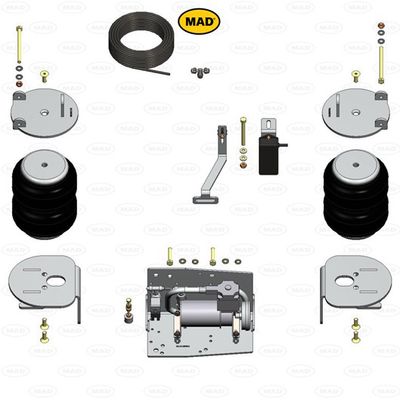

MAD AIR MASTER COMFORT - Auxiliary air suspension bellows with compressor and operation panel.
MAD AIR MASTER AUTOMATIC - Auxiliary air bellows with compressor unit and auto self levelling - Continuous and fully automatic ride height control.
[tab name='Downloads']
PDF Flyer: MAD Toyota Hilux Air Springs | |
Install Guide: Mad Suspension Air Master Basic Toyota Hi-Lux | |
Warranty Policy: MAD Suspension Systems |
