MAD Suspension Air Master Basic TOYOTA Hi-Lux VIII

Fits Vehicle:

Toyota Hilux Mk.8-9 2016+ / 2021+ Hilux
Model KUN125L / KUN126L.

Kit Number: NR-367134-B
Engine: All
Year: 05/2015 to present day
Height Difference (mm):
Install Time (min): 90
Approval: TUV
Spring Compressors: No
Remarks: Excl. GR Sport

Specification:

Two 6 inch double chamber air bellows for the rear
The double chamber airbellows come with a 2 year warranty
Includes filling valves
Fitting time 90 Mins
Adjustments are made by filling up the system like a regular tyre
MAD High Quality Product
Quick installation, without excessive work
Variable setting depending on load
Production in accordance with ISO and TÜV requirements
Mounting brackets are laser-cut and zinc phosphated

MAD AUXILIARY AIR SUSPENSION

If you want to be comfortable on the road in both loaded and unloaded situations. More comfort, stability and safety with a MAD air suspension system.

An alternative to auxiliary suspension by means of a coil spring is auxiliary air suspension. MAD has two types of auxiliary air suspension - An air bag that is placed inside the coil spring or air bellows that are mounted next to the original spring.

Depending on the existing suspension of your vehicle, one of the two auxiliary air suspension applications is possible. If the existing suspension is insufficient due to, for example, an extra heavy load, the auxiliary suspension is activated.

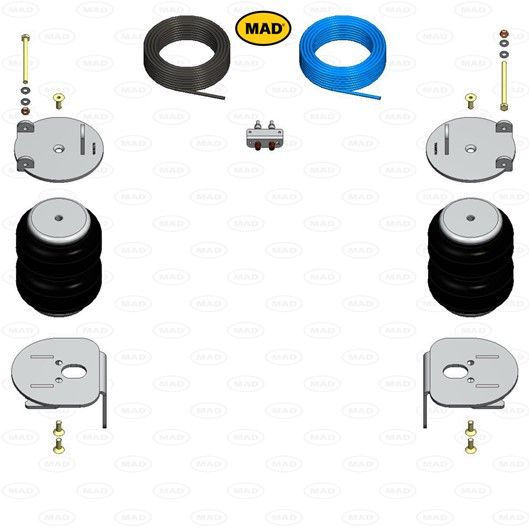

MAD AIR MASTER BASIC - Auxiliary air suspension black bellows with 2 manual filling valves.

	PDF Flyer: MAD Toyota Hilux Air Springs
	Install Guide: Mad Suspension Air Master Basic Toyota Hi-Lux
	Warranty Policy: MAD Suspension Systems
